Block machine - Burgersdorp

Code : 003
contact person : haydar boyla / +90 549 325 66 70


products included the price

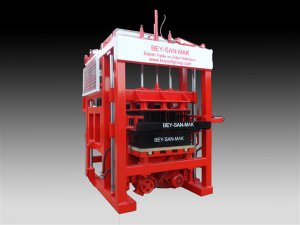

prs 400 manual single hopper brick machine a four 1 pcs. Prs 400 different types of brick moulds ( st 52) 2 pcs. Pallet front output table manual 1 pcs. Manual system pallet carrier 3 pcs. Machine operator platform 1 pcs. Prs 400 manual machine electric unit 1 pcs. 250 dm3 cebri mixer (side transmission-with wear metal) 1 pcs. 6,5 mt 0,50 x 0,8 conveyor with pan (fixed) 1 pcs. 5 m3 single compartment bunker (low vibration) 1 pcs. 7,5 mt 0,50 x 0,8 conveyor with pan (fixed) 1 pcs. Compressor 50 lt - pneumatic air system 1 pcs. Agrega crusher with double roller 18 m3/h. 1 pcs. Mixer operator platform 1 pcs. Prs 400 manual mortar system electric unit 1 pcs. 4 serial manual/2. Quality pallets with bottom wedge, without frame 500 pcs. 35 ton cement silo (basic model with - inlet and drain pipe) 1 pcs. Helezon 120 - pipe 4-6 meter range 1 pcs. 25 kg cement scale hopper (1/2 bag) 1 pcs. Some specifications

prs 400 - manual operated system has been designed for mortar plant on the ground, placement images are in the catalog. The manual machine has been prepared on the basis of 24 hours work shift and if enough pallets are avalible , with working 8 hours daily shift. The machine can produce between 3500 - 5000 pieces brick of 20 cm. Manual machines working system is based on manpower therfore by the given values about daily production can declines between 20 - 25 %. Description

for the machine with the propertys given above, recommended installation and stock area average is 1500 m2 there is no obligation to roofing of the producing area. Concrete floor of the installation course is advised to be at the rate of 1/3. The products of the manual machine are placed to the drying area one by one. That's why the fields square meter average is more than by semi automatic system. In addition; because the pallets with products are placed over a wide area collecting takes lot's of time , in that case we observed declines in staff working capacity. Therfore we advice you to prefer automatic systems. Other properties

producing on one pallet: 4 pcs. 20 cm// 6 pcs. 15 cm/8 pcs. 10 cm/12 pcs. Of interlocking paving blocks. Pallet size: 50x90 x 4 cm
production staff: 5 employes (1 employe for mixer /1 employe for machine / 3 employes for pallet carrying )
export transport volume average is 2 pcs. Container of 40 m3 - 2 pcs. Of 20 m3. Commercial rules

the campaign prices are valid until 30. 06. 2015

delivery time is maximum 70 working days. Operators course to one of your employe will given by our company before delivery. The machine has been designed with a single mortar hopper. The second mortar hopper can added, the price is not included. Experiment and production test will be done in our factory field with observation of the recipient. Commissioning process also can be done on the field of the customer, where the installation will be established. The costs for transportation and accomodation of the montage personel and hydraulic oil for the machine shall be paid by the recipient. By editing of the official contract 30% of the order will be charged in advance. The remaining cash will be charged by delivery. The total payment of the order, made in advance 5% more extra discount is applied. Our prices are factory delivery prices in trabzon turkey. Transport and insurance costs are not included in the price, by overseas sales, taxes are not be requested. All of our products are suitable for sale on the bank loan and leasing. All of our manufacturing defects in all of our products are guaranteed for 2 years. In case of failure we guarantee to intervene domestic 48 hours, all around the world between 72 - 120 hours. For the preparations you have to do in your field, discovery and installation plan will be given freely through our company. Special offer for the customers

for the customers who orders extra materials like pallets, silo, bunker, packing materials , forklift etc. 10 % discount is applied.
